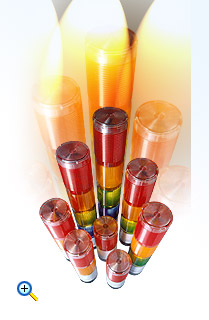

Tower Light |
| 1.Applications: |
Suitable for displaying
the operation status of machines tools, industrial machines,
special purpose machines, automatic production line, robot,
etc. |
| 2.Design Features: |
The unique prism-cut globe provides
wide radiance, high intensity, bright color and higher quality
than other equal type products. |
3.Construction
Features: |
The inner structure uses high
light-pervious braces. This means no shadows reflected on globes,
and light shines without any shadow zone. Fixture is made of
engineering plastic. |
4.Vibration-resistant
Structure: |
The patented lower part and inner
construction contain a vibration absorber that effectively absorbs
a wide range of vibration frequencies, greatly reducing any
adversity on the globe. This improves the operation life of
the bulbs. The long-life vibration resistant bulbs offer low
maintenance.
* Standard Version :
The bulb holders of our product are installed with high elastic
rubber elements to absorb the shock waves during machine operation.
When shock pulses occur the rubber element transfers the high
frequency waves to a slower vibration. This effectively decreases
the impact on the bulb extending the operation life. (See Picture
028)
* Compound Version :
This version id designed for high vibration machinery. As well
as the internal vibration resistance, the compound version uses
a tip-to-tip shock-absorbing cushion, which greatly increases
its ability to absorb shock waves. (See Pictures
029.030) |
| 5.Easy Replacement: |
Globes are manufactured with thread,
making a no-tools-required replacement. (See Picture
031) |
| 6.Additional Function: |
Buzzer (95Db/m) is available
upon request. Non-flashing version emits continuous sound; non-flashing/flashing
version intermittent sound.
LED
Light is also available with extra charges. |
7.Electric device
Features: |
•Non-flashing model: The
desired element lights with the signal wires from each element.
•Non-flashing/ flashing model: With a built-in flashing
circuit, each element can be switched independently to non-flashing
or flashing, with signal wires of each element. (Non-flashing
while both non-flashing and flashing are ON.) (See Picture
034 for Signal Connection Control)
• The steady-frequency NE555 oscillator is used for high
reliability and long operating life.
• To avoid overload, every bulb circuit uses the dedicated
transistor element (DC) or TRIAC element (AC) to drive the current.
This extends the life of the driving element.
• The power of the AC flashing circuit is obtained by
the capacitive voltage reducing. This simplifies the circuit;
decreases the heat normally generated by the device turning
on and off; and occupies less physical space. This increases
the overall lifespan of the product.
•The changeable safety fuses are attached on all models
to improve reliability.
• See
Electrical Characteristics. |
| 8.Globes Colors: |
Globes standard colors : (from
top to bottom)
1st unit: Red
2nd unit: Red-Yellow
3rd unit: Red-Yellow-Green
4th unit: Red-Yellow-Green-Blue
5th unit: Red-Yellow-Green-Blue-White |
| 9.Mounting Methods: |
Please refer to accessories for
various
mounting methods as well as patented rotating base. (See
EL) |
| 10.Quality Guarantee: |
In accordance with EN/EEC/CE regulations. |
